The Orchestrator of Your Electric Drive

Brushless Motor Controllers

Our advanced Motor Controllers for Permanent Magnet Synchronous Motors (PMSM), Brushless DC Electric Motors (BLDC) and IPM Motors have been designed to cater to a growing variety of electric propulsion applications on land, sea and in the air.

The siliXcon Motor Controllers provide an elevated user experience, combining exceptional performance with unmatched smoothness and controllability. We dedicated our unique engineering expertise to meet the most demanding power and safety standards across diverse electric powertrain applications.

Custom Solutions

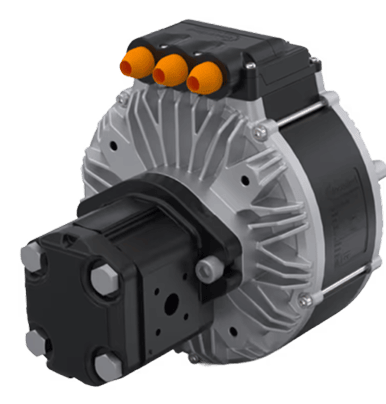

Electric Motor

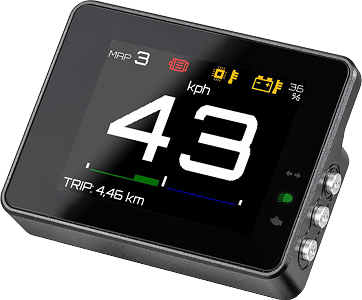

Accessories

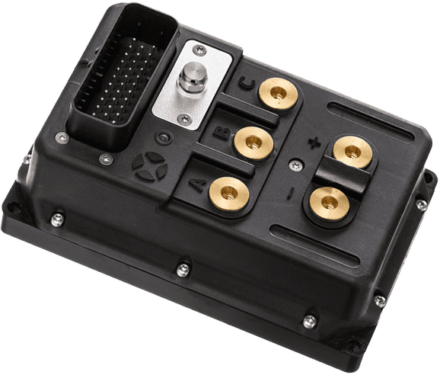

Motor Controller

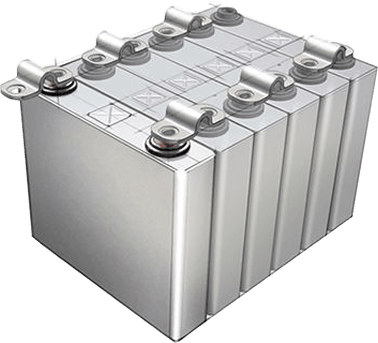

Battery System

Controller	Series	Power	Peak Power	Voltage	Peak RMS Current	Burst Current	Weight	Dimensions
SL MV Controller	SL	35.8 kW	48 kW	118 V	580 A	800 A	1500 g	96 x 200.6 x 63.9 mm
Raptor L FAN	SL	25 kW	42 kW	84 V	580 A	800 A	1020 g	96 x 147.7 x 81.55 mm
SL Controller	SL	26.2 kW	36 kW	84 V	580 A	800 A	1200 g	96 x 147.7 x 63.9 mm
SX Controller	SX	22.5 kW	28 kW	84 V	300 A	600 A	700 g	80.6 x 139.3 x 47 mm
SX MV Controller	SX	21.5 kW	28 kW	118 V	300 A	600 A	720 g	80.6 x 139.3 x 47 mm
Raptor C FAN	SC	12.5 kW	22 kW	84 V	300 A	600 A	440 g	53 x 116.6 x 51.4 mm
Raptor C FLAT	SC	13.5 kW	22 kW	84 V	300 A	600 A	330 g	37.5 x 116.6 x 51.4 mm
SC Controller	SC	13.5 kW	20 kW	84 V	300 A	600 A	570 g	66 x 131.1 x 35.1 mm
TX MV Controller	TX	10.7 kW	20 kW	118 V	140 A	300 A	360 g	50 x 130 x 30 mm
TX Controller	TX	10.2 kW	14.5 kW	84 V	140 A	200 A	350 g	50 x 130 x 30 mm
Raptor M FAN	AM	4 kW	6 kW	68 V	100 A	200 A	130 g	38.9 x 86.7 x 23.2 mm
Raptor M FLAT	AM	4.2 kW	6 kW	68 V	100 A	200 A	110 g	38.9 x 86.7 x 13 mm
AM Controller	AM	2.2 kW	4.2 kW	68 V	60 A	100 A	130 g	38.9 x 100.8 x 14.5 mm
AX Controller	AX	2.6 kW	3.4 kW	60 V	60 A	100 A	150 g	41 x 102.5 x 21.6 mm

SL Series

SL MV Controller

Request sample

UP TO 35.8 kW CONTINUOUS

siliXcon SL MV – the flagship controller delivering the highest power with galvanic isolation for demanding applications.

SL Series

Raptor L FAN

Request sample

UP TO 25 kW CONTINUOUS

siliXcon Raptor L Fan – ultralight 25 kW speed controller with integrated cooling for weight-critical UAV, UGV, and defense missions.

SL Series

SL Controller

Request sample

UP TO 26.2 kW CONTINUOUS

siliXcon SL – the most powerful low-voltage controller with galvanic isolation for safety-critical electric drives.

SX Series

SX Controller

Request sample

UP TO 22.5 kW CONTINUOUS

siliXcon SX controller – automotive-grade workhorse built for series production across electric powertrain, industrial, and marine sectors.

SX Series

SX MV Controller

Request sample

UP TO 21.5 kW CONTINUOUS

siliXcon SX MV controller – the SX platform for middle-voltage applications, offering the same robust design at higher bus voltages.

SC Series

Raptor C FAN

Request sample

UP TO 12.5 kW CONTINUOUS

siliXcon Raptor C Fan – ultralight 12.5 kW speed controller with integrated cooling for mission-critical UAV, UGV, and defense platforms.

SC Series

Raptor C FLAT

Request sample

UP TO 13.5 kW CONTINUOUS

siliXcon Raptor C Flat – ultralight 13.5 kW speed controller in a flat form factor for mission-critical UAV, UGV, and defense platforms.

SC Series

SC Controller

Request sample

UP TO 13.5 kW CONTINUOUS

siliXcon SC controller – high current in a compact package, bridging the gap between the lightweight AM/AX and the powerful SX/SL platforms.

TX Series

TX MV Controller

Request sample

UP TO 10.7 kW CONTINUOUS

siliXcon TX MV controller – the TX platform extended to middle-voltage, delivering higher bus voltages in the same compact form factor.

TX Series

TX Controller

Request sample

UP TO 10.2 kW CONTINUOUS

siliXcon TX – exceptional power density, extracting more kilowatts per kilogram than any other low-voltage siliXcon controller.

AM Series

Raptor M FAN

Request sample

UP TO 4 kW CONTINUOUS

siliXcon Raptor M Fan – ultralight 4 kW motor speed controller with integrated cooling for UAV, UGV, and defense platforms.

AM Series

Raptor M FLAT

Request sample

UP TO 4.2 kW CONTINUOUS

siliXcon Raptor M Flat – ultralight 4.2 kW motor speed controller in a flat form factor for UAV, UGV, and defense platforms.

AM Series

AM Controller

Request sample

UP TO 2.2 kW CONTINUOUS

The lightest and thinnest siliXcon controller, designed for weight-critical applications like drones and e-bikes where every gram counts.

AX Series

AX Controller

Request sample

UP TO 2.6 kW CONTINUOUS

siliXcon AX controller – same power class as the AM but with integrated connectors for plug-and-play assembly in e-bikes and light vehicles.

Custom Solutions

If the standard product does not match all your requirements, we are always ready to design a solution tailored to your project. We are able to change size, shape, power, voltage, amperage, connectors and other main technical features according to your needs.

View Technology
