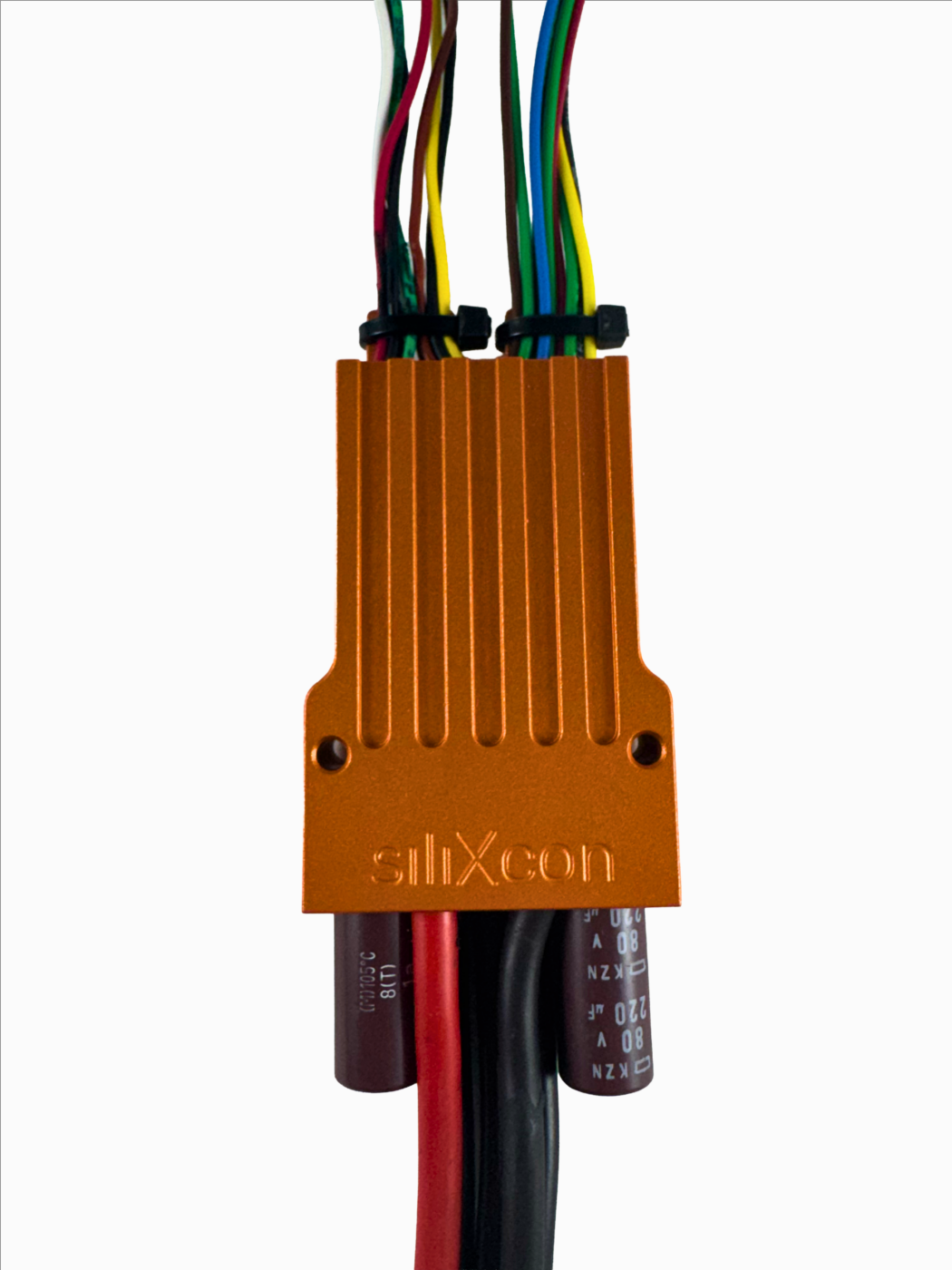

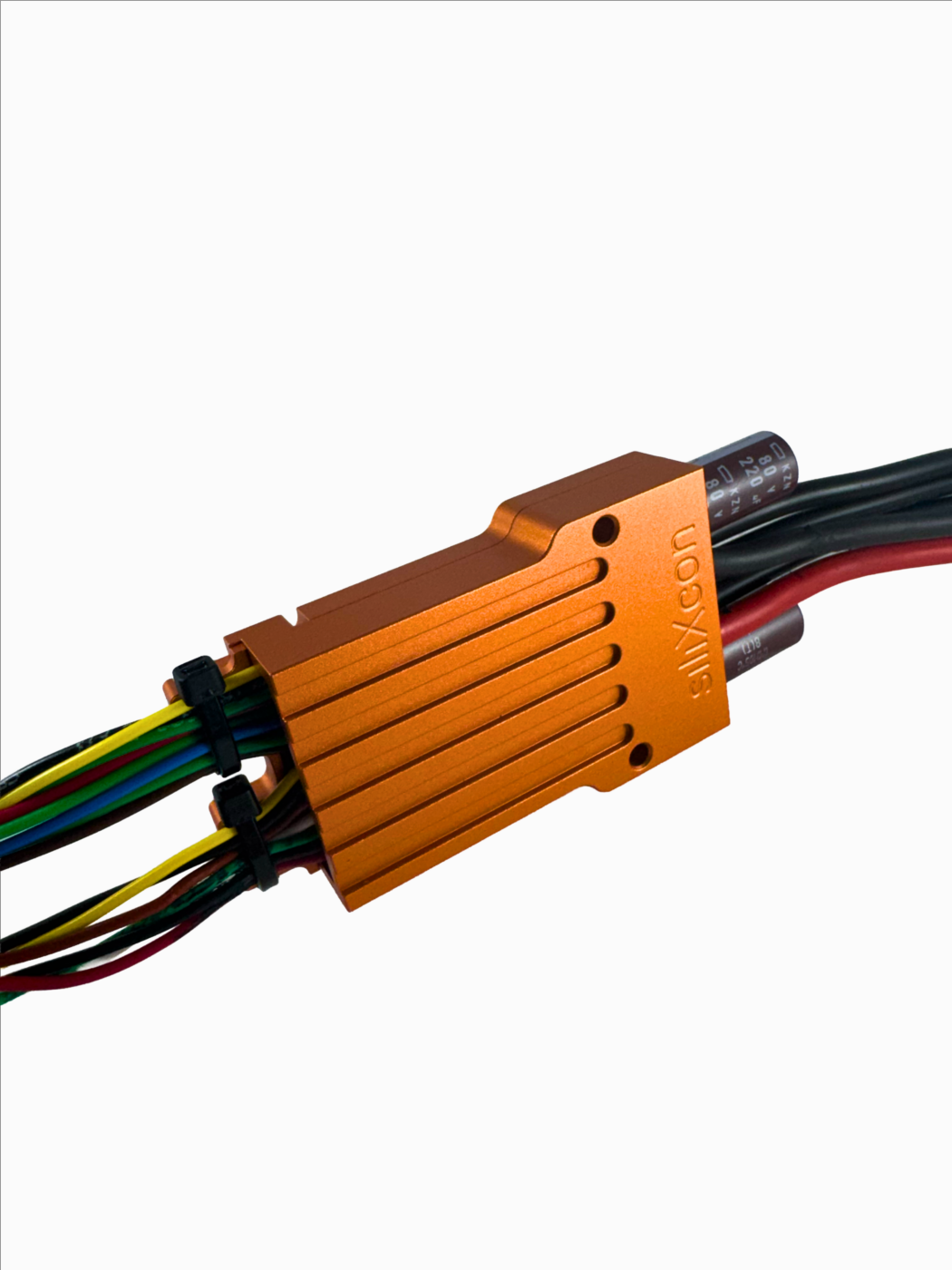

Raptor M FLAT
4.2 kW Ultralight Flat Brushless ESC
This ultralight controller is the ideal choice for aviation platforms and other systems emphasizing minimal weight and high performance. Tailored for drone, UAV, UGV, and defense applications where high reliability, efficiency, and easy integration are paramount. It brings a professional-grade platform closer to users accustomed to standard RC equipment.
Key Specifications
| Series | AM Series |
| Nominal Power | up to 4.2 kW (steady 60°C at the heatsink) |
| Peak Power | up to 6 kW |
| Voltage | up to 68 V |
| Peak Current (RMS) | up to 100 A RMS (maximum continuous with external forced overcooling) |
| Burst Current | up to 200 A |
| Weight | 110 g |
| Dimensions | 38.9 x 86.7 x 13 mm |
| Motors | PMSM (BLDC, BLAC), Induction |
| Drive Modes | Vector drive with DTC and FOC, Block commutation |
| Connectivity | USB, UART (isolated), CAN-bus (isolated) |
| Protection | Overcurrent, overtemp, phase short circuit, galvanic isolation |
Ultralight flat motor speed controller — the ultimate minimal-weight solution for aviation and defense platforms.
Dynamics
Zero ramping, quick command reaction, ability to anticipate
Rugged Design
Almost impossible to damage – built to last in harsh environments
Sensorless Mode
Full torque right from startup without position sensors
Sensor-Sensorless Modes
Combinations for both BLDC and FOC control methods
Vehicle Control Unit
Connectivity, enough computing capacity, modularity
Unique Telemetry
Precise measurement methods, powerful R&D tools
Modularity
Complex platforms, easy to update (FW), easy to customize (HW)
All Types of Motors
BLDC/PMSM – radial + axial flux, IPM, reluctance, asynchronous
Easy Deployment
Powerful SW Tools to help with the final integration
Controller Firmware
Firmware consists of two major parts: the motor control algorithm and the application.
Both are hardware independent — scale your project without any problem. The application handles system behaviour while the algorithm controls the motor, protecting the motor, battery, and controller.
All controllers also support our scripting language. Customize existing applications or write your own logic from the ground up.
Custom Application
We can provide you a completely custom firmware solution tailored to your specific use-case requirements.
OPHION
Simple analog motor control via potentiometer or PLC — for pumps, conveyors, and servo drives.
LYNX
Complete vehicle control system for scooters, bikes, and motorbikes with built-in power maps and 500+ functions.
FALCON
RC vehicle control for drones, RC cars, and boats with servo PWM input and safety features.
ECHO
Minimal firmware with no internal logic — full motor control via CAN or UART from an external VCU.
IGNIS
Starter-generator control for hybrid and range-extender applications with cranking sequence and overvoltage protection.
